Cobalt Chrome Dental Disc
$225.00 – $399.00

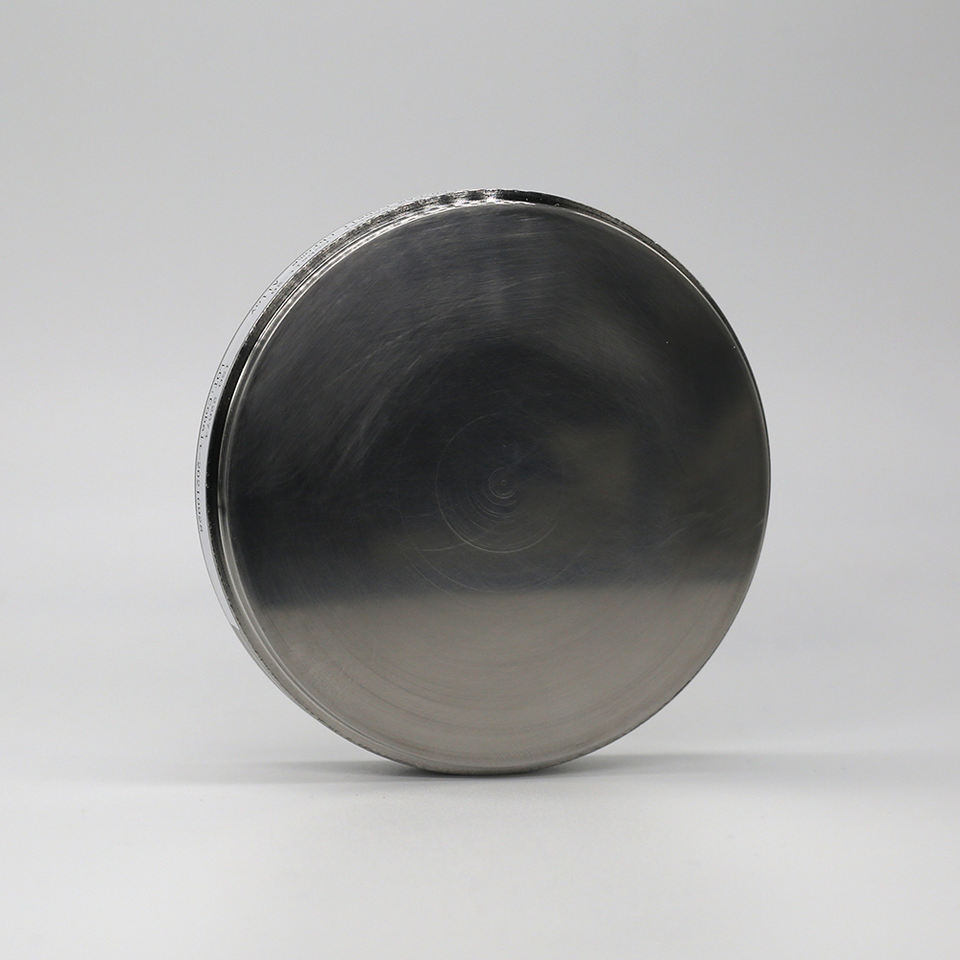

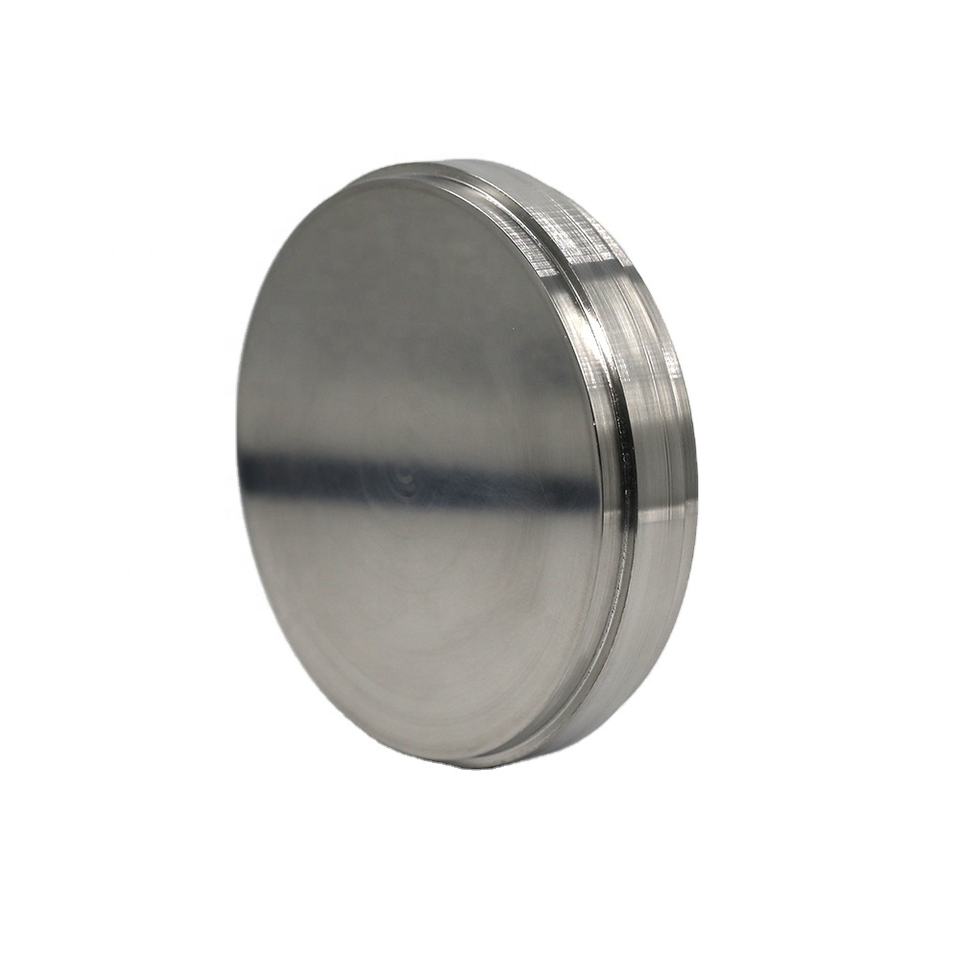

CAD-CAM Cobalt Chrome dental milling disc.
Application in dentistry: Implant-supported prostheses: bar, abutments, crowns, and bridges, Veneer aesthetic.
Diameter 98 mm in round shape with step, thickness: 10-25 mm.
Description
Cobalt Chrome Dental Disc
Cobalt chrome dental milling disc is nickel and beryllium-free.
It has excellent metal-porcelain bonding properties. The disc is also lasering weldable.

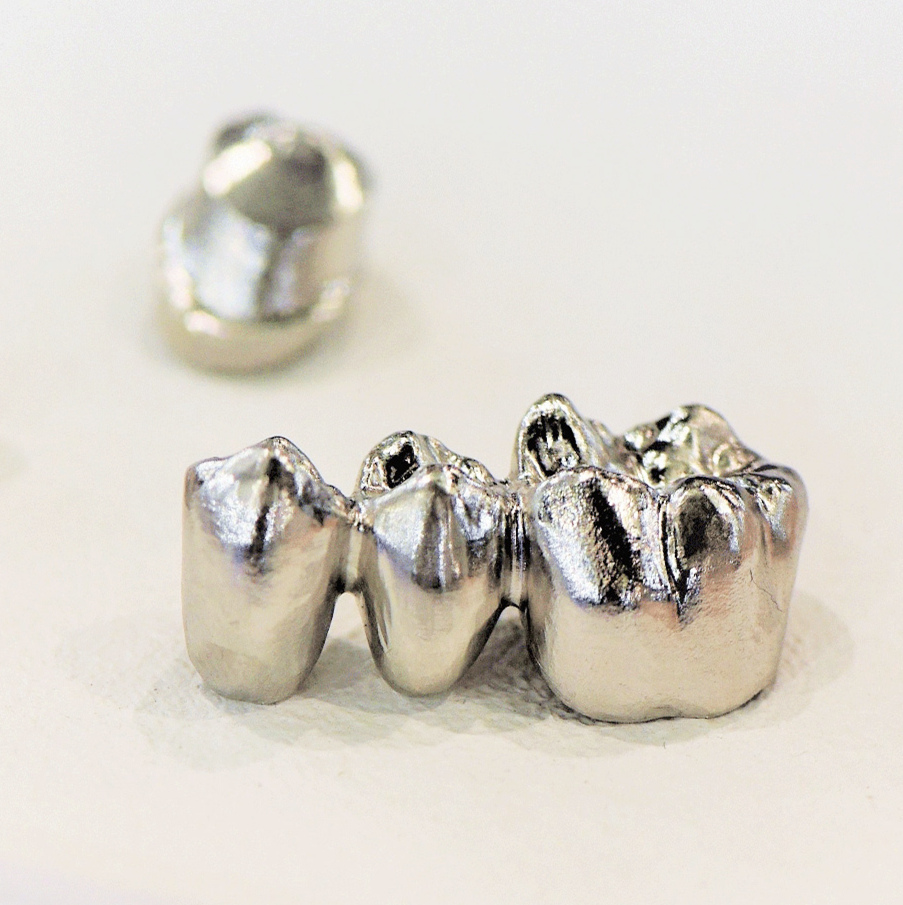

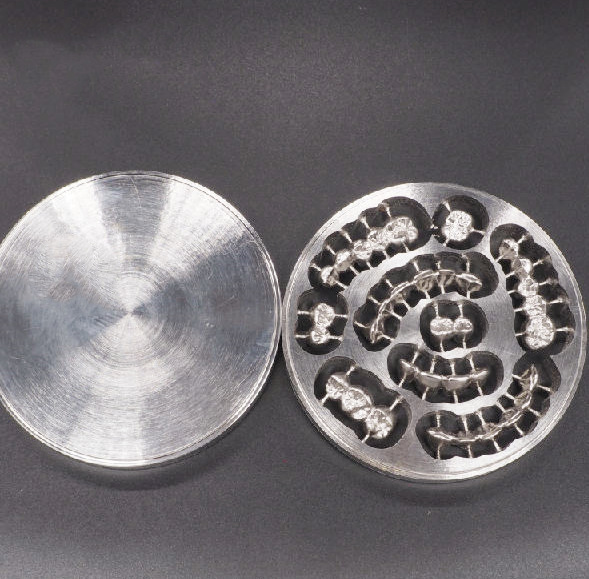

CAD-CAM Cobalt chrome dental milling disc in the laboratory is purposed to fabricate prosthesis of crowns, bridges, implant-supported superstructures, abutments, etc.
Main Features
1. Biocompatibility and high corrosion resistance thanks to firmly adhering passive layer.
2. Biocompatibility contact with human being bone
3. Hemolysis Ratio: 0.66%
4. No acute systemic toxicity
5. Cytotoxicity shall not exceed Class I
6. No oral mucous membrane irritation
7. No delayed dermal contact sensitization
8. No chronic systemic toxicity
9. No genetic toxicity
10. The cobalt chrome milling discs have high corrosion resistance: -Test medium and conditions: Volume fraction of 1% HCI solution, the temperature is constant at 37 ℃, 72 hours total immersion corrosion test -Test results: in the solution after corrosion, residual solution of 1% HCL solution has no discoloration, cobalt chrome alloy quality unchanged before and after corrosion test.
11. Alloy PFM products have good thermal shock resistance.
Cobalt chrome dental disc composite
| Co | 61% |
| Cr | 27.5% |
| W | 8.5% |
| Si | 1.6% |
| C, Mn, Fe | <1% |
Technical
| Hardness | ≥HRC20 |
| Strength of extension | ≥560MPa |
| Percentage elongation after fracture | 7% |
| Proof strength f0.2 Rp0.2 | Average590MPa，deviation±10% |
| Young modulus | Average210GPa，deviation±10% |
| Density | 8.3g/cm3，deviation±0.5g/cm |
| Coefficient of linear expansion | CTE［10-6K-1］25～500℃：14.3，deviation±0.5 |
| Ion precipitation degree | The total amount of metal ions≤200μg /cm2 |
| Mental-ceramic combining strength | ≥25MPa |
| Cold resistance and heat resistance | Have good performance |
Additional information
| Height | 10 mm, 12 mm, 14 mm, 16 mm, 18 mm, 20 mm, 22 mm, 25 mm |
|---|
