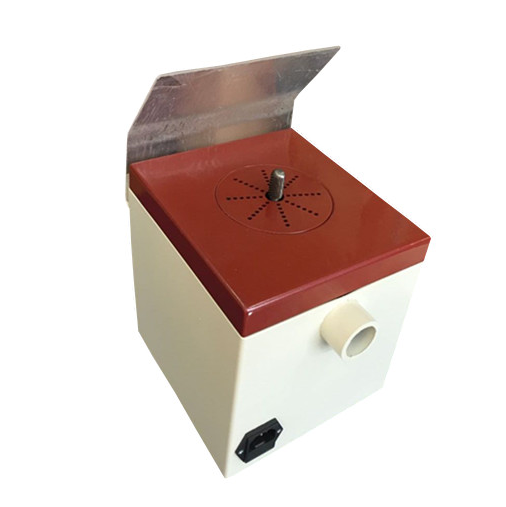

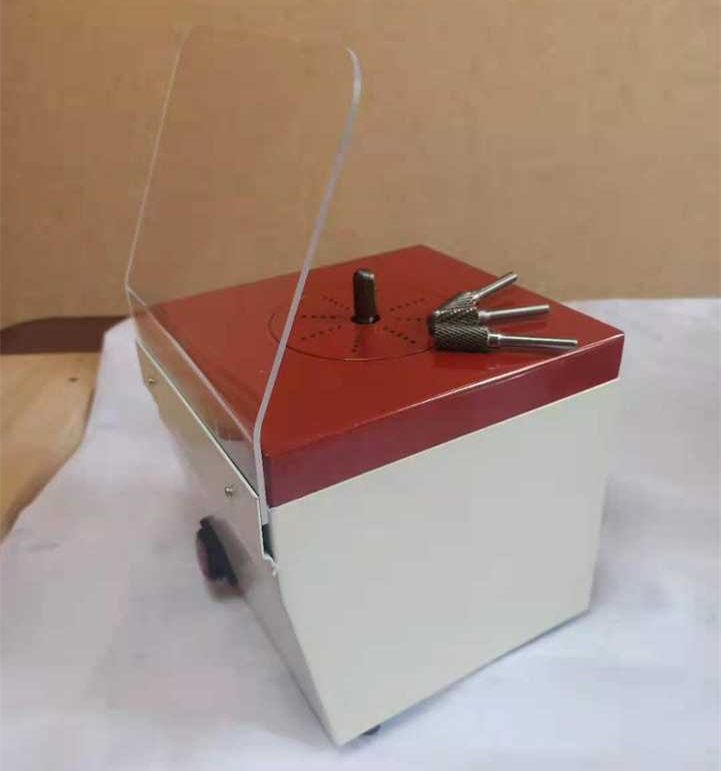

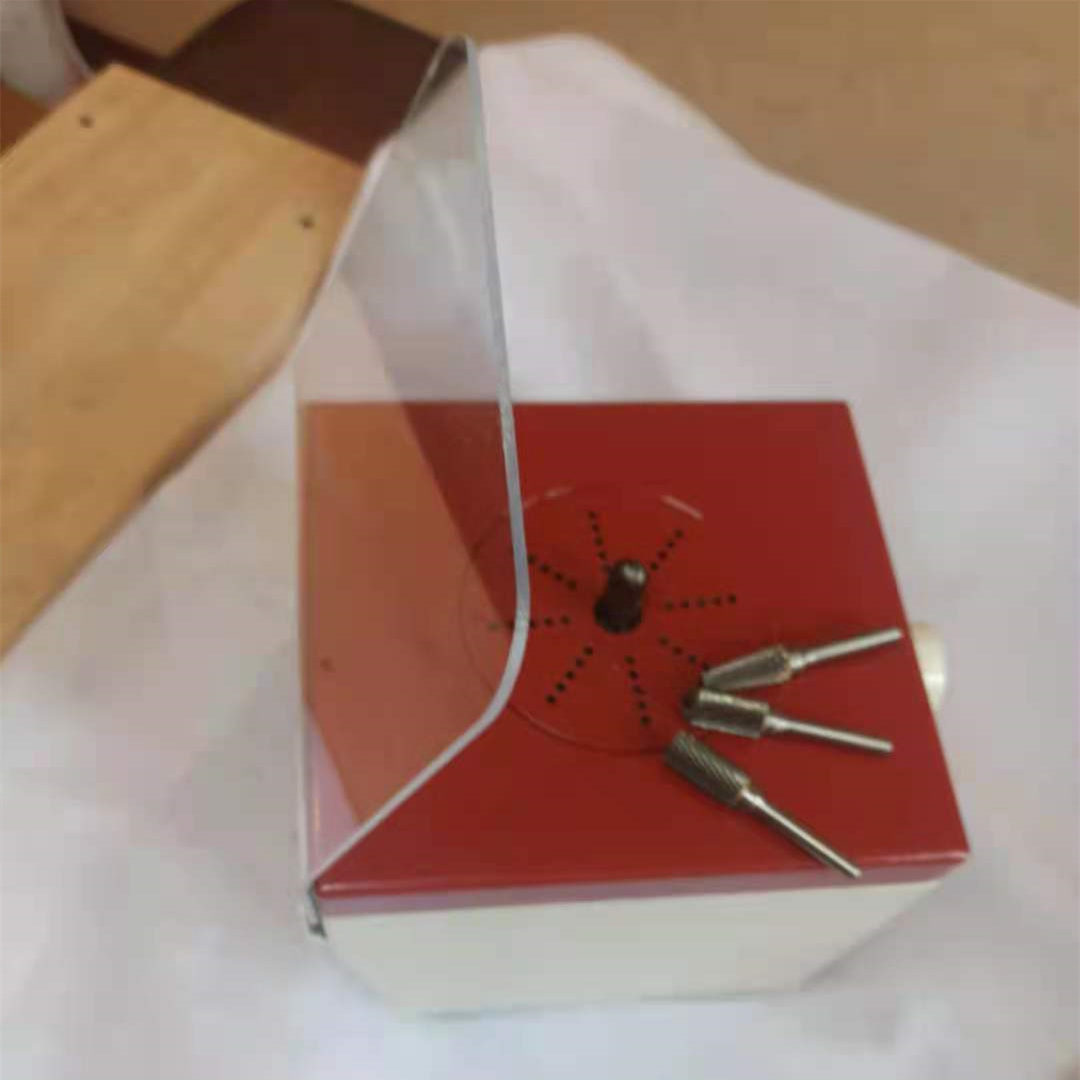

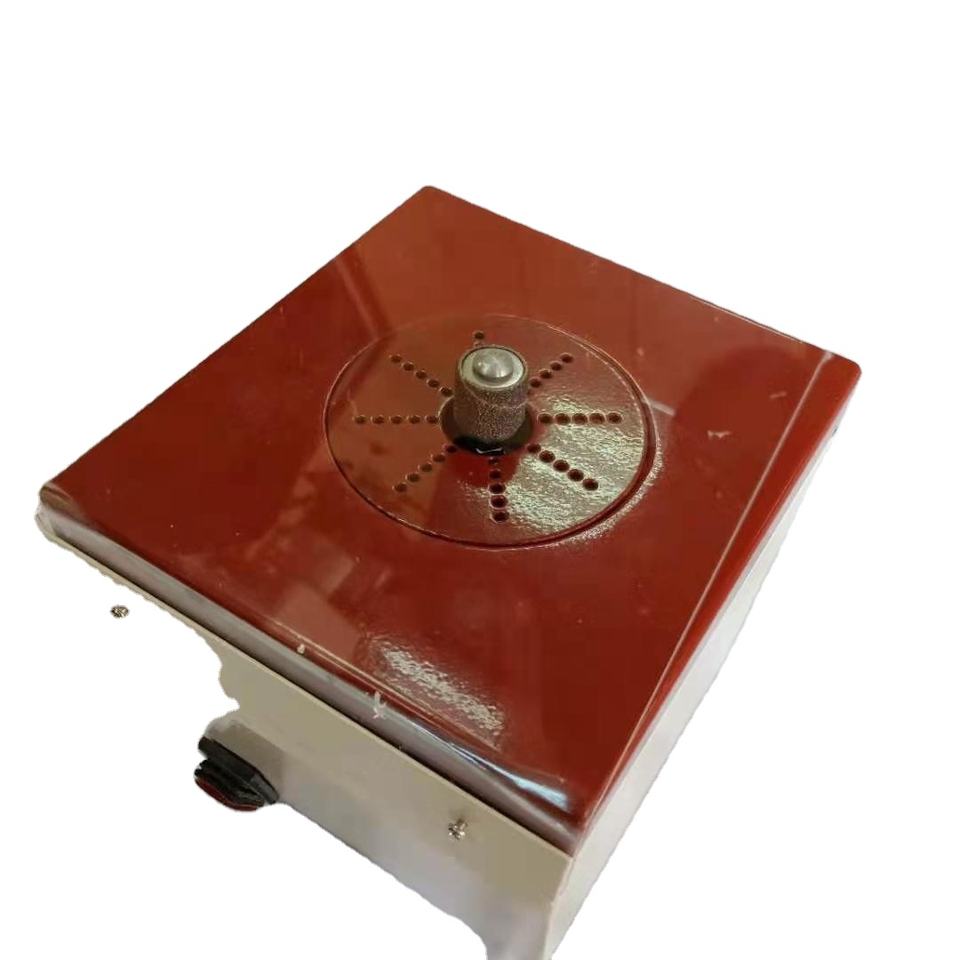

Dental Grinder Machine

Description

Dental arch trimmer

The equipment is necessary equipment for trimming the sides of plaster models. It consists of a case, a motor, a hard alloy grinding head, a power switch and an indicator light.

The dental grinding machine offers fast and excellent trimming of dental molds.

It is operated by electricity and is essential for fine cutting.

The grinding machine has a cutting disc that smooths the surface of the dental die.

Diagram:

1. Grinding Head

2. Working Platform

3. Dust Outlet

Specifications:

Power supply voltage	AC 220V,110V/ 50,60Hz ±10%
Power	140w
Dimensions	230*210*260 mm

Package dimension: 30 x 30 x30 cm, shipping weight: 6.5 Kg.

Uses

It is used for the cutting and trimming of dental appliances, restorations and various devices.

Instructions

1. Unpack the carton case, check if all the accessories are complete. Read this manual carefully before use.

2. The electric outlet must have a good grounding.

3. After connecting to the power supply, the indicator light in the lower left corner of the machine should be on.

4. Turn on the power switch, the motor(grinding head) should start working and the red indicator light in the power switch is on.

5. While grinding, push with both hands with gentle and evenly, do not touch the grinding head.

6. Users can connect the dust outlet with a pipe into a dust box, connecting with a suction box is preferable.

7. Clean the dust in the dust chamber regularly.

Cautions

1. There might be two possibilities if the motor does not work:

a. If the green indicator light is not on, check if the power supply is connected and whether the fuse tube in the electric outlet is burned out.

b. If the green indicator light and the power indicator are on, check if there is open circuit in the motor, capacitor and circuit.

2. If the shaking is severe, it could be caused by the loosening of the nut on the clip. To resolve the problem, lift the cover and tighten the loose nut.
